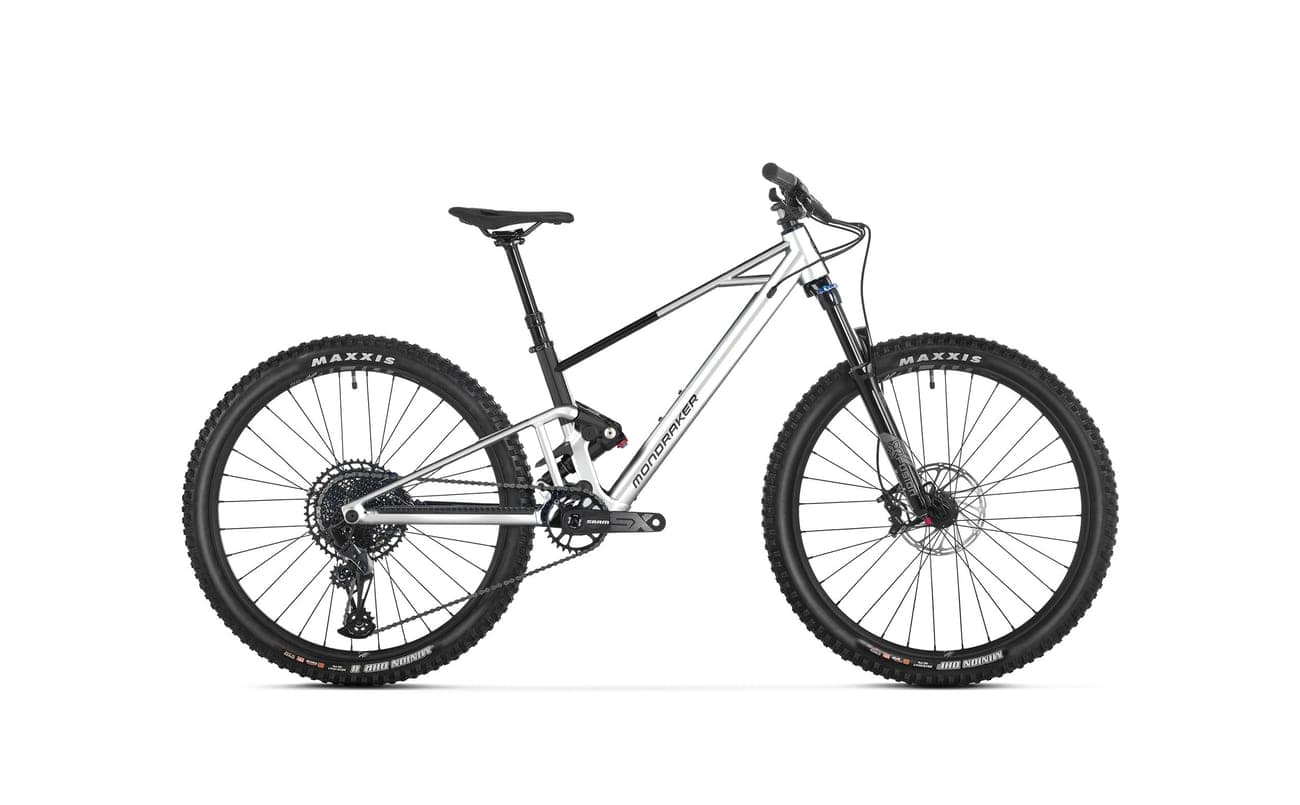

Mondraker F-Trick 26
On order
Full-suspension mountain bike for kids, with well-chosen components.
€2,599
from €109/month · Indicative amount over 24 instalments · financing in store, even at 0% APR
On order— Orderable from the supplier, delivery on request.
Store pickup (Mestre) or shipping.
TelaioF-Trick 26 6061 Alloy Stealth Evo Cambio posterioreSram 70 Eagle Description
Full-suspension mountain bike for kids, with well-chosen components.
Available to order: orderable from our store in Mestre. Contact us for delivery times, colours and size.
Specifications▾
- Telaio
- F-Trick 26 6061 Alloy Stealth Evo, hydroformed tubing, Zero Suspension System, 130mm travel, one piece bolt-on upper link, 12x148mm rear axle, UDH, 73mm BSA bottom bracket, HHG internal cable routing, dedicated 1x drivetrain design.
- Taglie
- One size: 350mm
- Ammortizzatore
- X-Fusion 02PRO R, 165x45mm. Settings: low-speed rebound, air preload. Trunnion top, 50x8mm bottom bushings
- Regolazione ammortizzatore
- A-Tune light compression
- Forcella
- X-Fusion Slant RC 26, 140mm, air spring, tapered steerer tube, 15x100mm axle, 34mm aluminum stanchions, 41mm offset. Settings: lockout, rebound, air preload
- Serie sterzo
- Onoff ZS44/ZS56, 1-1/8", 1.5" head tube, ACB sealed bearings, top 42x30x7x45ºx45º, bottom 52x40x8x45ºx45º
- Attacco manubrio
- Onoff S3 30mm 0º, 6061 forged alloy, 31.8mm barbore
ManubrioMDK XC 1.0, 6061 alloy, rise: 25mm, width: 680mm, 9º backsweep, 5º upsweep, 31.8mm barbore ManopoleOnoff Beehive, 1lock-on, 135mm ReggisellaX-Fusion Manic LC internal, diameter 31.6mm, 1X Remote lever, 125mm Freno anterioreShimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads Freno posterioreShimano MT520, 4-piston caliper, RT56 180mm IS 6 bolts rotor, resin pads Leve FrenoShimano MT501, servo wave, alloy lever CerchiMDK-XP1 26 TLR, 25mm internal width, tubeless ready, 32 spokes RaggiCN round stainless steel Asse mozzo anterioreDA210FS02, 15x100mm, cup & cone ball bearings, IS 6 bolts Asse mozzo posterioreDA207R 12x148mm, cup & cone ball bearings, IS 6 bolts, HG freehub Pneumatico anterioreMaxxis Minion DHF 26x2.5, Tubeless ready, 3C MAXX TERRA, EXO Protection, 60TPI, folding bead Pneumatico posterioreMaxxis Minion DHR II 26x2.4, Tubeless ready, EXO Protection, 60TPI, folding bead GuarnituraSram 70 T-Type, DUB axle, Direct mount chain ring, 155mm Movimento centraleSram DUB BSA, sealed bearings, 73mm CatenaSram 70 T-Type, 12s Flattop, PowerLock Cambio posterioreSram 70 Eagle, T-Type, 12s Comandi cambioSram Trigger 70, 12s, T-Type Actuation CassettaSram XS-1270, 10-52T, 12s Geometry▾
| Size | Stack | Reach | Top tube | Head angle | Seat angle | Wheelbase |
|---|
| F-Trick 26 | 553 | 377 | 550 | 65.5 | 76 | 1050 |
Size guide▾
| Height | Recommended size |
|---|
| < 165 cm | S |
| 165–175 cm | M |
| 175–185 cm | L |
| 185+ cm | XL |
Indicative values. For the perfect size, visit us in store for a fitting.
