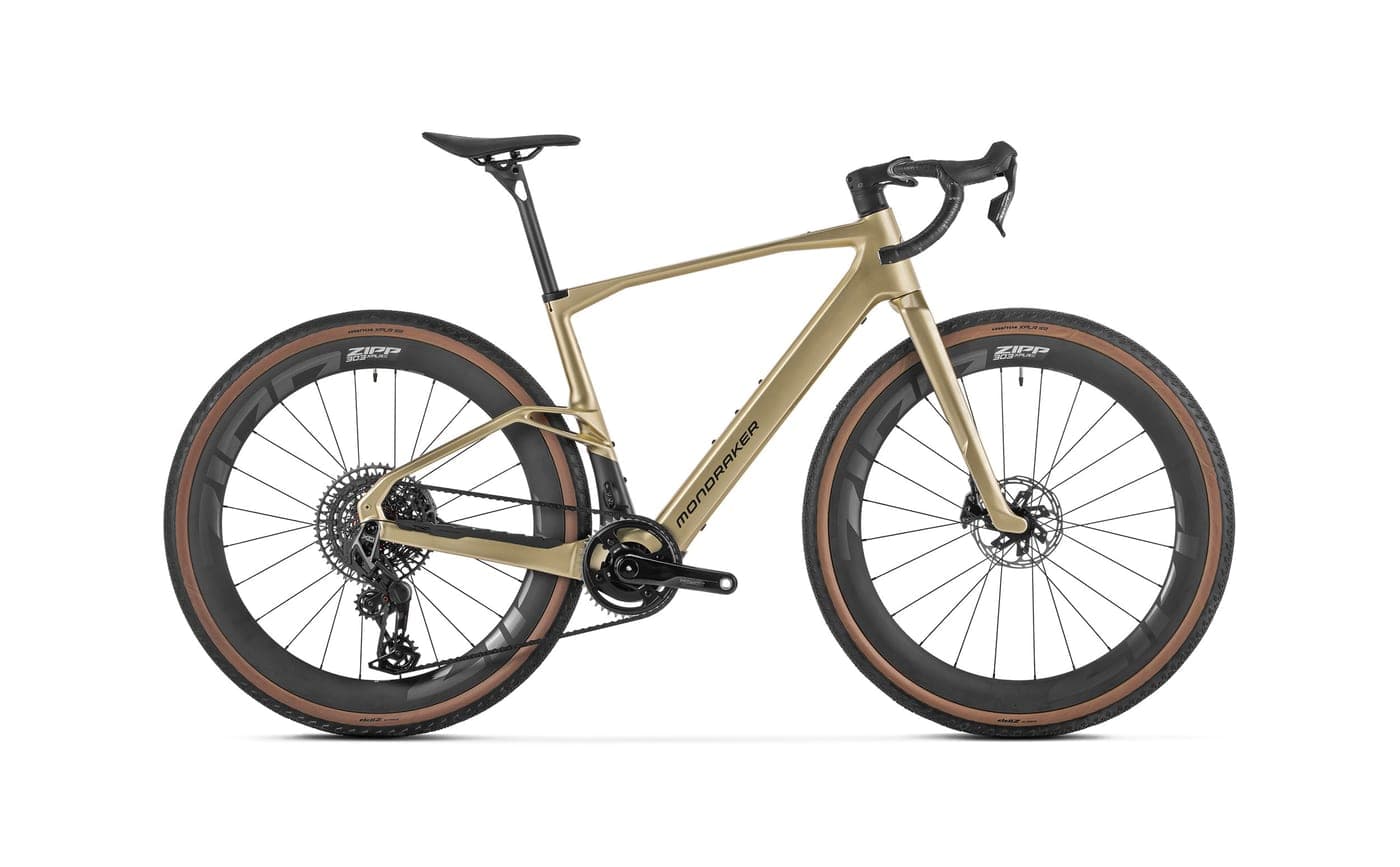

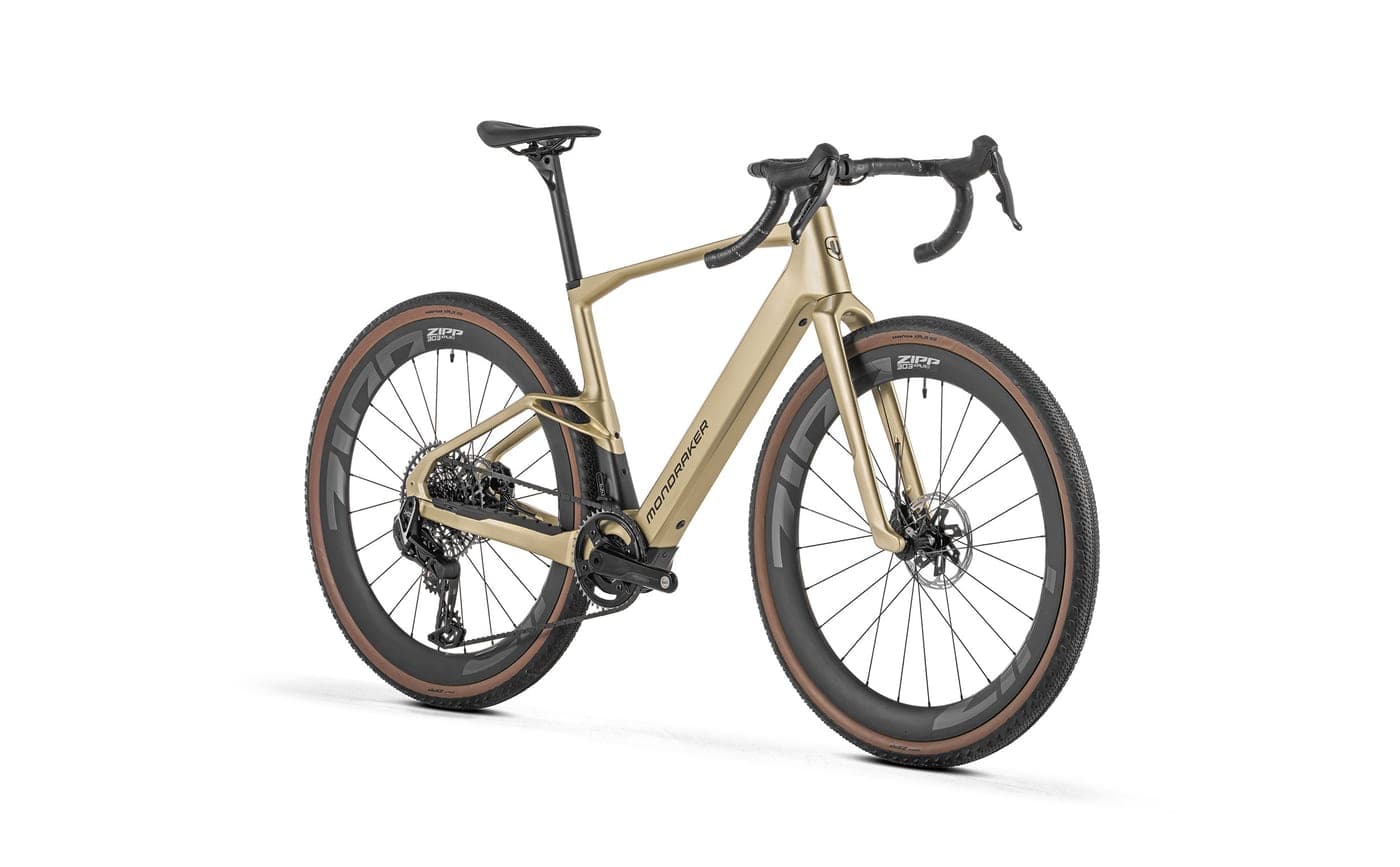

Mondraker Dusty RR
On order
E-gravel with TQ system: quiet, light and adventure-ready.
€8,999
from €375/month · Indicative amount over 24 instalments · financing in store, even at 0% APR
On order— Orderable from the supplier, delivery on request.
Store pickup (Mestre) or shipping.
BatteriaTQ HPR Battery V05 580Wh TelaioDusty Stealth Air Carbon Cambio posterioreSram X0 Eagle AXS T-Type Description
E-gravel with TQ system: quiet, light and adventure-ready.
Available to order: orderable from our store in Mestre. Contact us for delivery times, colours and size.
Specifications▾
- Telaio
- Dusty Stealth Air Carbon, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, Flatmount brake compatible, integrated dropout speed sensor.
- Taglie
- S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
- Forcella
- Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
- Serie sterzo
- Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
- Attacco manubrio
- Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
- Manubrio
- Onoff S9 GR Carbon 16º bar flare. Width sizes S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
- Manopole
- Fizik Terra Solocush Tacky Bartape
SellaFizik Vento Argo X5 140mm Freno anterioreSram Force AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad Freno posterioreSram Force AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad Leve FrenoSram Force, eTap shift logic, Bonus button ANT+, tooled reach adjust, carbon brake lever CerchiZipp 303 XPLR S, carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes Asse mozzo anteriore76 Disc Brake, 12x100mm,Centerlock Asse mozzo posteriore176 Disc Brake, 12x142mm, XDR 3 Pawls leaf springs, Centerlock. XDR Freehub Pneumatico anterioreGoodyear XPLR Inter 700x50 Pneumatico posterioreGoodyear XPLR Inter 700x50 GuarnituraE.13 Piedmont Race Carbon E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm CoronaSram X-Sync Eagle 42T, 107BCD, alloy, narrow-wide + E.13 Helix e.spec 107BCD alloy driver CatenaSram X0 Eagle T-Type, 12s, Powerlock Cambio posterioreSram X0 Eagle AXS T-Type,12s Comandi cambioSram Force AXS HRD, 13s, CassettaSram XS-1295, 10-52T, T-Type 12s AltriSram AXS Extension Cord, *Optional external battery: TQ 160Wh DisplayTQ HPR Display V04 Color BatteriaTQ HPR Battery V05 580Wh Geometry▾
| Size | Stack | Reach | Top tube | Head angle | Seat angle | Wheelbase |
|---|
| S | 548 | 363 | 520 | 70 | 74 | 1012 |
| M | 572 | 384 | 550 | 70 | 74 | 1044 |
| M/L | 591 | 411 | 580 | 70 | 74 | 1075 |
| L | 619 | 422 | 600 | 70 | 74 | 1098 |
| XL | 642 | 446 | 630 | 70 | 74 | 1129 |
Size guide▾
| Height | Recommended size |
|---|
| 155–165 cm | XS · 47–49 |
| 165–172 cm | S · 51–52 |
| 172–178 cm | M · 54 |
| 178–185 cm | L · 56 |
| 185–193 cm | XL · 58 |
| 193+ cm | XXL · 60+ |
Indicative values. For the perfect size, visit us in store for a fitting.
