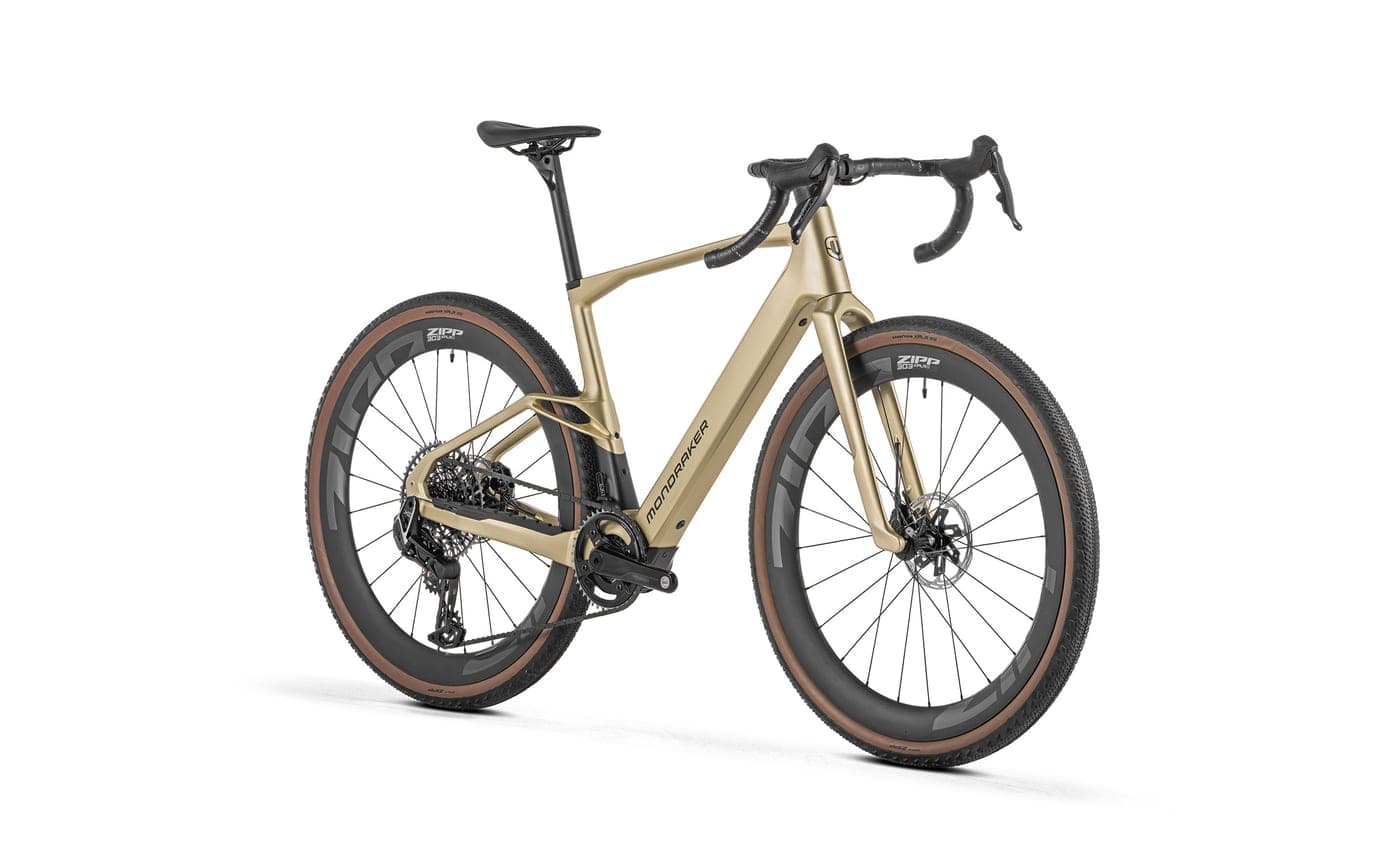

Mondraker Dusty R
On order
E-gravel with TQ system: quiet, light and adventure-ready.
€6,999
from €292/month · Indicative amount over 24 instalments · financing in store, even at 0% APR
On order— Orderable from the supplier, delivery on request.
Store pickup (Mestre) or shipping.
BatteriaTQ HPR Battery V05 580Wh TelaioDusty Stealth Air Carbon Cambio posterioreSram GX Eagle AXS T-Type Description
E-gravel with TQ system: quiet, light and adventure-ready.
Available to order: orderable from our store in Mestre. Contact us for delivery times, colours and size.
Specifications▾
- Telaio
- Dusty Stealth Air Carbon, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, Flatmount brake compatible, integrated dropout speed sensor.
- Taglie
- S: 410mm / M: 450mm / ML: 480mm / L: 510mm / XL: 540mm
- Forcella
- Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
- Serie sterzo
- Onoff IS52/IS52, 1-1/8", 1.5" head tube, sealed bearings, Internal cable routing.
- Attacco manubrio
- Onoff Semi-Integrated, 31.8mm barbore, rise: -7°, length: S size: 60mm, M size: 70mm, ML size 70mm, L size: 80mm, XL size: 90mm
- Manubrio
- Onoff S3 GR 16º bar flare. Width sizes: S size: 400mm M size: 420mm ML size: 420mm L size: 440mm XL size: 460mm
- Manopole
- Onoff HEX Bartape
SellaFizik Vento Argo X5 140mm Freno anterioreSram Rival AXS HRD 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad Freno posterioreSram Rival AXS HRD, 2 piece caliper, Paceline 160mm Centerlock rotor, steel-backed organic pad Leve FrenoSram Rival, tooled reach adjust, carbon brake lever CerchiMavic Allroad S Carbon, UST,42mm height, 25mm internal width, 24 spokes RaggiMavic Steel J Bent spokes Asse mozzo anterioreMavic, 12x100mm, Centerlock Asse mozzo posterioreMavic infinity hub, 12x142mm, ID360 Ratchet system, Centerlock, XDR Freehub Pneumatico anterioreMaxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead Pneumatico posterioreMaxxis Reaver 700x50, HYPR-X compound, EXO protection, tubeless ready, 120 TPI, folding bead GuarnituraE.13 Piedmont Core E*Spec, S size: 160mm M size: 165mm ML size: 165mm L size: 170mm XL size: 170mm CoronaSram X-Sync Eagle 42T, 107BCD, alloy, narrow-wide + E.13 Helix e.spec 107BCD alloy driver CatenaSram GX Eagle T-Type, 12s, Powerlock Cambio posterioreSram GX Eagle AXS T-Type,12s Comandi cambioSram Rival AXS HRD CassettaSram XS-1275, 10-52T, T-Type, 12s AltriSram AXS Extension Cord, *Optional external battery: TQ 160Wh DisplayTQ HPR Display V04 Color BatteriaTQ HPR Battery V05 580Wh Geometry▾
| Size | Stack | Reach | Top tube | Head angle | Seat angle | Wheelbase |
|---|
| S | 548 | 363 | 520 | 70 | 74 | 1012 |
| M | 572 | 384 | 550 | 70 | 74 | 1044 |
| M/L | 591 | 411 | 580 | 70 | 74 | 1075 |
| L | 619 | 422 | 600 | 70 | 74 | 1098 |
| XL | 642 | 446 | 630 | 70 | 74 | 1129 |
Size guide▾
| Height | Recommended size |
|---|
| 155–165 cm | XS · 47–49 |
| 165–172 cm | S · 51–52 |
| 172–178 cm | M · 54 |
| 178–185 cm | L · 56 |
| 185–193 cm | XL · 58 |
| 193+ cm | XXL · 60+ |
Indicative values. For the perfect size, visit us in store for a fitting.
